W Series AC EV charger 7kW/11kW/22kW

W Series AC EV charger 7kW/11kW/22kW

Nome da marca: DOOR
Número do modelo: Série de W
Quantidade mínima: 1 unidade
preço: Negociável
Condições de pagamento: L/C, T/T, Western Union
Informações pormenorizadas
Lugar de origem:
China
Certificação:
CE/CB
Fonte de energia:
1P+N+PE
Tensão nominal:
CA 230V
Corrente nominal:
32a
Freqüência:
50/60Hz
Tensão de saída:
CA 230V
Corrente Máxima:
32a
Potência nominal:
7KW
Conector da carga:
Soquete GBT/Tipo 2
Gabinete:
ABS+PC
Painel frontal:
ABS
Leitor RFID com indicador LED:
Verde/Azul/Vermelho Mifare ISO/IEC 14443 A
Modo de início:
Plug & Charge/cartão RFID/APP
Parada de Emergência:
Sim
WI-FI:
Opcional
Ethernet/3G/4G:
Opcional
Ocpp:
OCPP 1.6 (OCPP 2.0 opcional)
Medidor da energia:
não
RCD:
30mA Tipo A + 6mA CC
Proteção de entrada:
IP65
Proteção contra impactos:
IK08
Certificação:
CE | CB((In Progress))
Padrão da certificação:
EN/IEC 61851-1: 2017, EN/IEC 61851-21-2: 2018
Garantia:
1 ano
Instalação:
Montador de parede/pólis
temperatura de trabalho:
-30°C ~ +50°C
Umidade de trabalho:
5%~95%
Altura do trabalho:
<2000m
Dimensão do pacote:
440*400*170mm (C*L*A)
Peso bruto:
5,1kg
Pacote Externo:
Caixa
Descrição do produto

W Series Ac chargers


The W Series Ac chargers are specifically designed for commercial applications, offeringreliable performance, smart connectivity, and flexible installation options.

————————————————————————————————————————————————————————————————————————————————————

1.Lower Deployment cost


85%lower CAPEX compared to DC fast charging, with simpler installation requirements and reduced electrical infrastructure costs.


2.Ideal For Long Parking


Perfect for 4-10 hour parking scenarios like employee parking, residential parking, and business park applications.


3.Scalable Deployment


Easily scale from 2 to 100+ charging points with modular design and phased deployment capabilities.


4.Smart Management


Advanced features including APP control, RFlD access,OCPP platform integration, and dynamic load balancing.

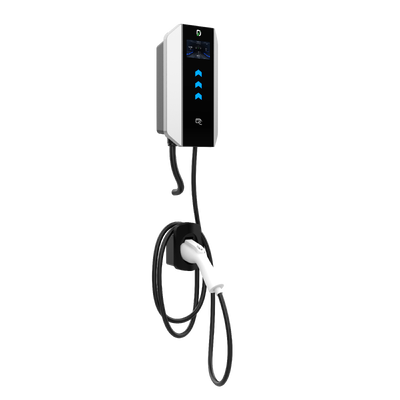

W Series AC EV charger 7kW/11kW/22kW 0

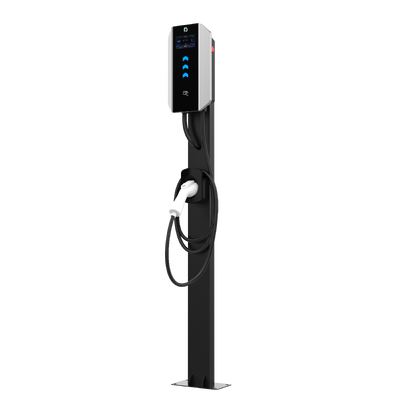

W Series AC EV charger 7kW/11kW/22kW 1

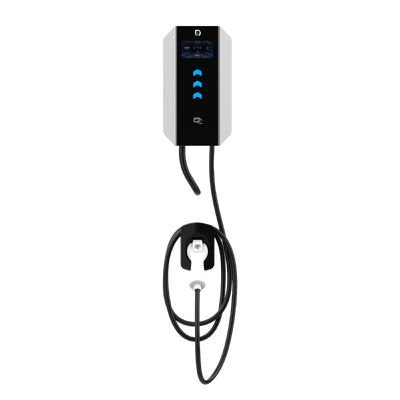

W Series AC EV charger 7kW/11kW/22kW 2

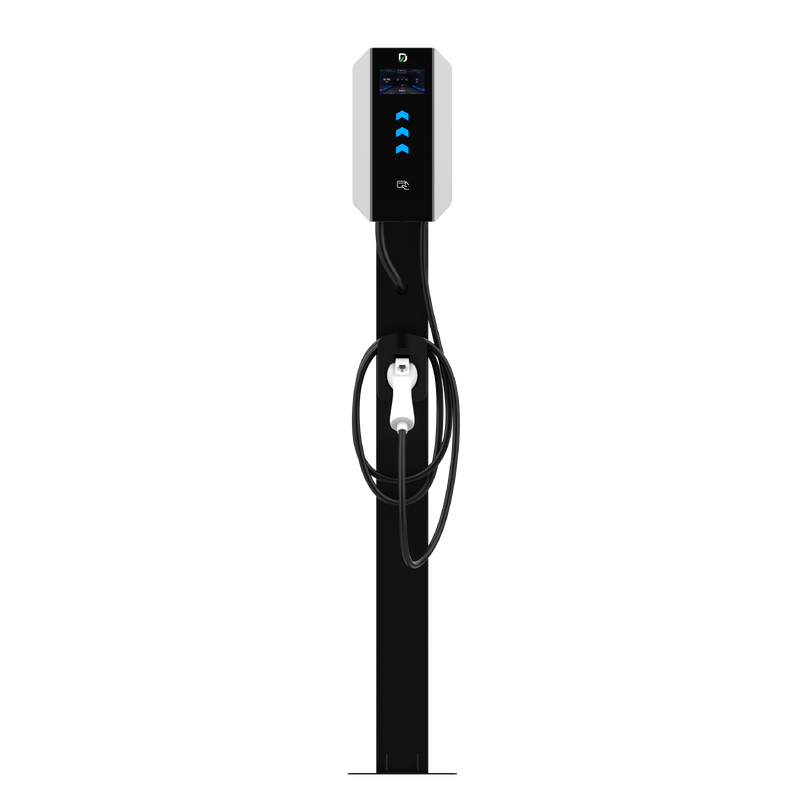

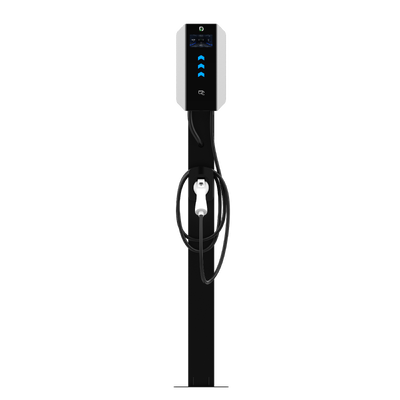

W Series AC EV charger 7kW/11kW/22kW 3
